Notice: SW is external dimension of polygon, the shape of product for size DN65-DN100 is decagon, under size DN50 is Octagon.
PRODUCT DESCRIPTION

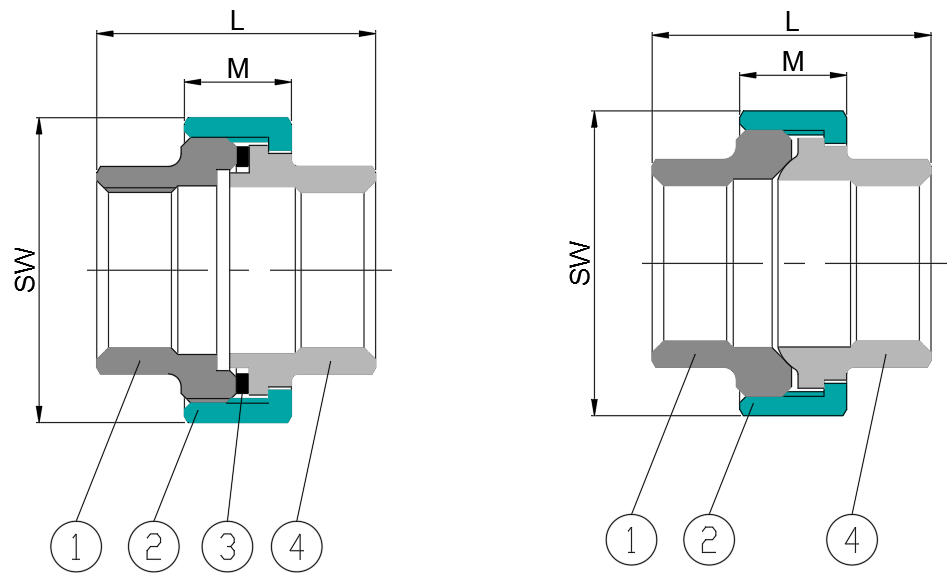

Size Specification:
| Size (inch) | DN | L | SW | M | Seal Size |
| 1/4" | 8 | 33.5 | 29 | 13.5 | Φ21.5XΦ14.3X2 |
| 3/8" | 10 | 36 | 34 | 14.5 | Φ26.5XΦ20.5X2 |
| 1/2" | 15 | 40 | 39 | 15 | Φ32XΦ24.5X2 |
| 3/4" | 20 | 43.5 | 47 | 16.5 | Φ38XΦ30.5X2 |
| 1" | 25 | 49 | 58 | 18 | Φ48XΦ38.5X2.5 |
| 1 1/4" | 32 | 55 | 67 | 20.5 | Φ57XΦ46.5X2.5 |
| 1 1/2" | 40 | 59.5 | 76 | 23 | Φ64XΦ53.5X3 |
| 2" | 50 | 64 | 90 | 25 | Φ78XΦ65.5X3 |
| 2 1/2" | 65 | 72 | 108 | 27 | Φ95XΦ84X3 |
| 3" | 80 | 80 | 122 | 28.5 | Φ108XΦ96.5X3 |
| 4" | 100 | 92 | 152 | 32 | Φ137XΦ123X3 |
Notice: SW is external dimension of polygon, the shape of product for size DN65-DN100 is decagon, under size DN50 is Octagon.
Material List:
| ITEM | PARTS | MATERIAL |
| 1 | Part 1 | CF8/CF8M |
| 2 | Part 2 | CF8/CF8M |
| 3 | Seal | PTFE |
| 4 | Part 3 | CF8/CF8M |
