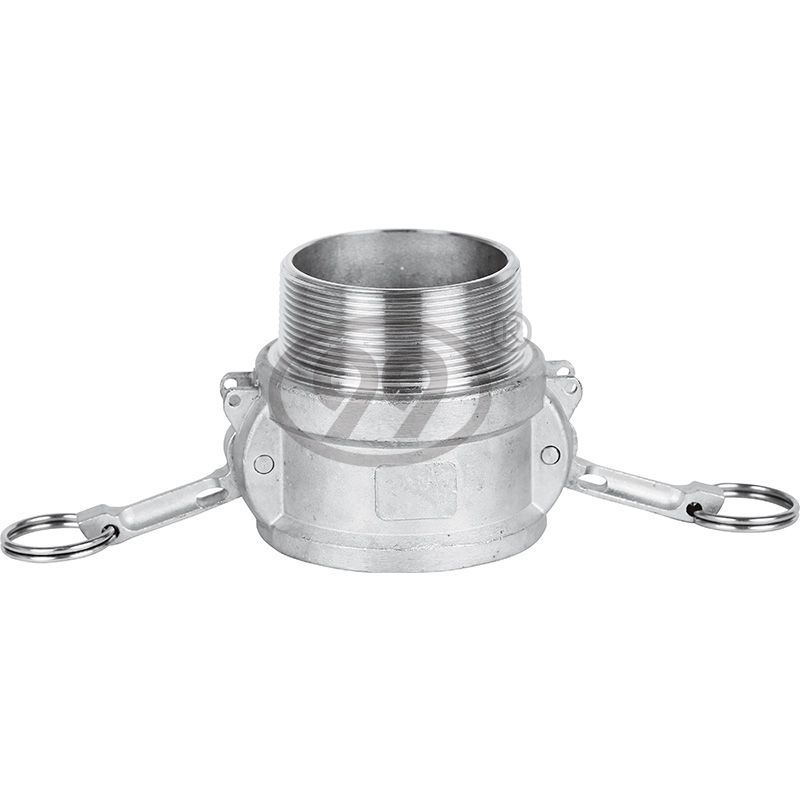

Quick couplings series: unique design, easy to transport, simple structure, easy to assemble, perfect sealing performance.
PRODUCT DESCRIPTION

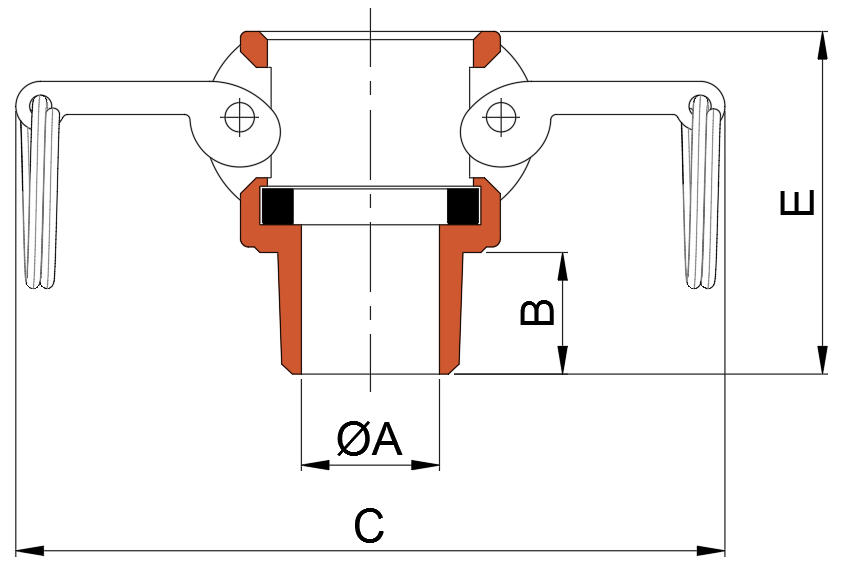

Size Specification
| Size (inch) | A | B | C | E |
| 1/2" | 15 | 18 | 109 | 51 |
| 3/4" | 20 | 19 | 109 | 52 |
| 1" | 25 | 22 | 129 | 62 |
| 1 1/4" | 32 | 22 | 172 | 70 |
| 1 1/2" | 38 | 23 | 180 | 72 |
| 2" | 50 | 26 | 190 | 80 |
| 2 1/2" | 64 | 31 | 216 | 89 |
| 3" | 76 | 34 | 233 | 94 |
| 4" | 100 | 37 | 261 | 98 |
| 5" | 125 | 40 | 287 | 100 |
| 6" | 150 | 44 | 359 | 115 |
| 8" | 204 | 48 | 408 | 119 |
| Size (inch) | A | B | C | E |
| 1/2" | 15 | 16 | 109 | 46.5 |
| 3/4" | 20 | 17 | 109 | 47.5 |
| 1" | 25.4 | 20 | 129 | 58 |
| 1 1/4" | 32.5 | 21 | 172 | 66 |
| 1 1/2" | 38.5 | 21 | 180 | 67 |
| 2" | 50 | 25 | 190 | 76.5 |
| 2 1/2" | 65 | 28.5 | 216 | 83 |
| 3" | 77.5 | 32 | 233 | 89 |
| 4" | 102 | 37 | 261 | 95 |
| General information about 99 camlock quick couplings | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16~PN64 |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Socket welded, Hose connection |
| Thread standard | DIN2999, BSP, BSPT, NPT, Metric(ISO) |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Testing, Assembling |
| Certificate | ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment) |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers' choice |
