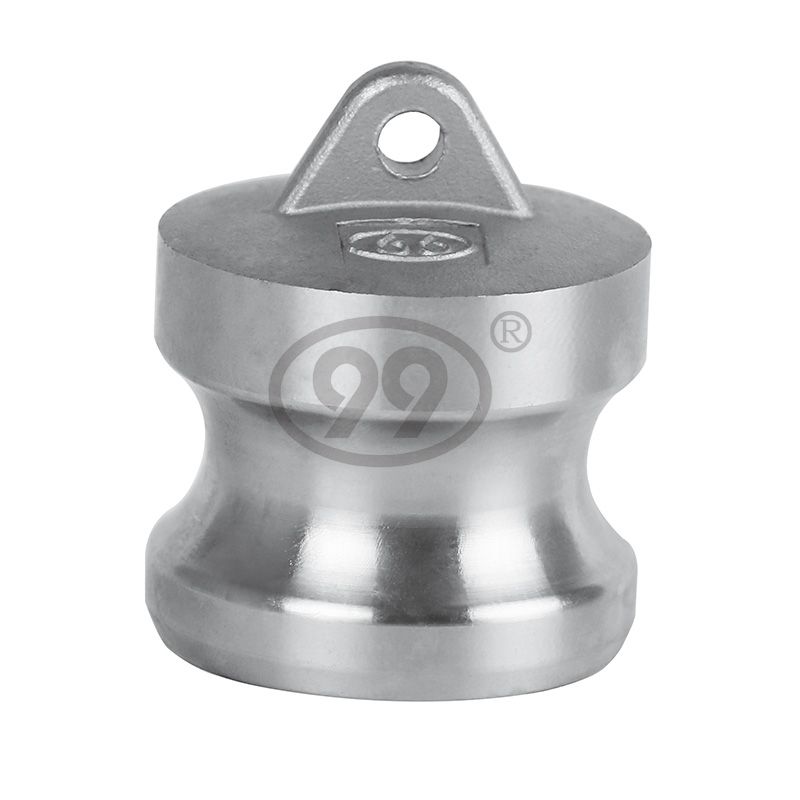

Quick couplings series: unique design, easy to transport, simple structure, easy to assemble, perfect sealing performance.
PRODUCT DESCRIPTION

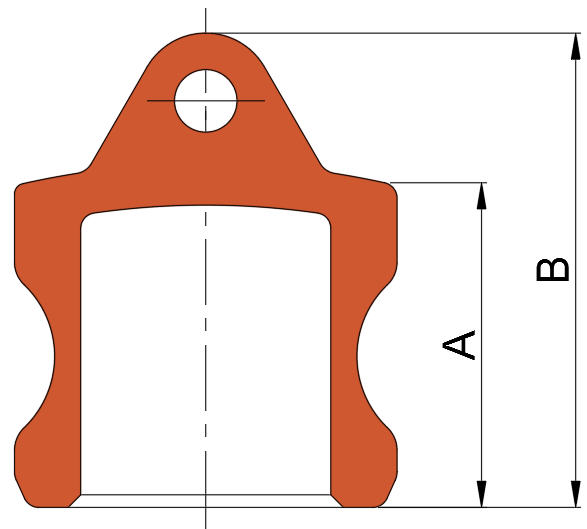

| Size (inch) | A | B |
| 1/2" | 24.5 | 40 |
| 3/4" | 24.5 | 40 |
| 1" | 31 | 45.5 |
| 1 1/4" | 38.5 | 55.5 |
| 1 1/2" | 39 | 57 |
| 2" | 44 | 63.5 |
| 2 1/2" | 47 | 67.5 |
| 3" | 49 | 71 |
| 4" | 49 | 68 |
| 5" | 50 | 67 |
| 6" | 57 | 75 |
| Size (inch) | A | B |
| 1/2" | 24.5 | 40 |
| 3/4" | 24.5 | 40 |
| 1" | 31 | 45.5 |
| 1 1/4" | 37 | 51 |
| 1 1/2" | 38 | 51 |
| 2" | 42 | 57 |
| 2 1/2" | 46 | 62 |
| 3" | 47 | 63 |
| 4" | 48 | 65 |
| 5" | 49 | 66 |
| General information about 99 camlock quick couplings | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16~PN64 |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Socket welded, Hose connection |
| Thread standard | DIN2999, BSP, BSPT, NPT, Metric(ISO) |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Testing, Assembling |
| Certificate | ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment) |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers' choice |
FAQ:
Q: How long has the company been established?
Q: Are you a trading company or manufacture?
Q: What is your delivery date?
Q: Do you provide free samples?
Q: What information do you need from me if I want to inquire?
Q: How do you control your quality?
