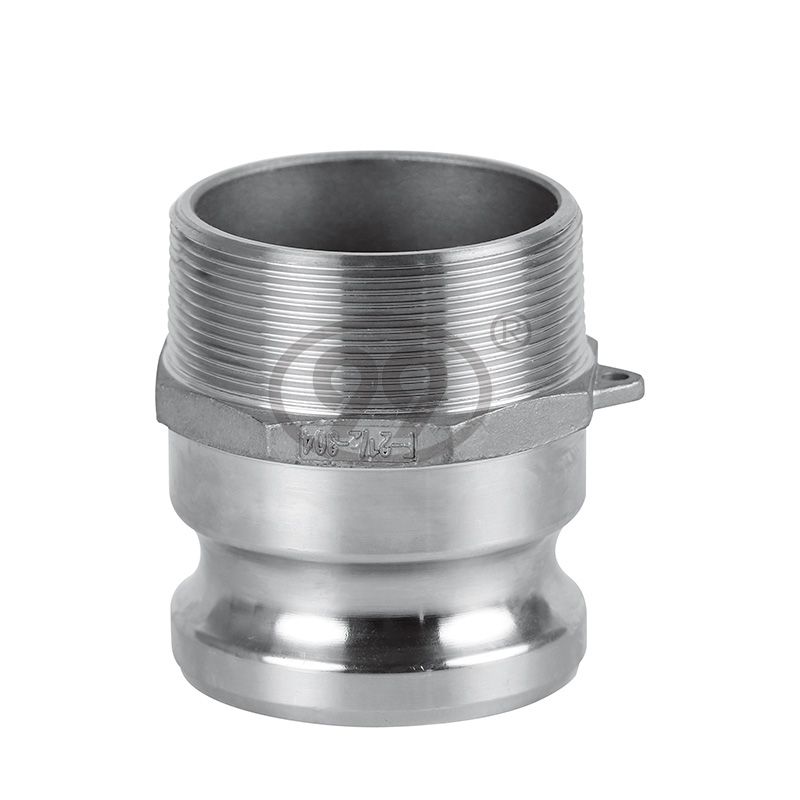

Quick couplings series: unique design, easy to transport, simple structure, easy to assemble, perfect sealing performance.
PRODUCT DESCRIPTION

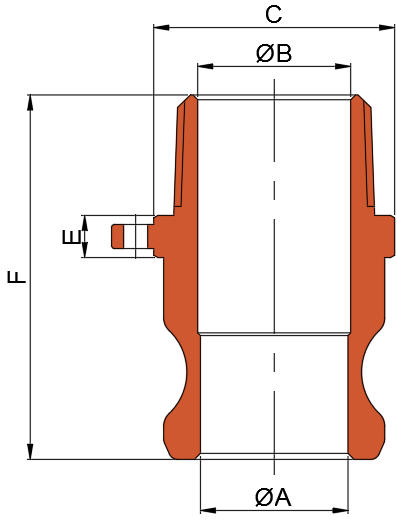

| Size (inch) | A | B | C | E | F |
| 1/2" | 21 | 14 | 34 | 11 | 56 |
| 3/4" | 21 | 19 | 34 | 11 | 57 |
| 1" | 24 | 25 | 40 | 14 | 70 |
| 1 1/4" | 29 | 32 | 48 | 14 | 77 |
| 1 1/2" | 36 | 38 | 56 | 15 | 80 |
| 2" | 45 | 50 | 67 | 15 | 88 |
| 2 1/2" | 57 | 64 | 83 | 18 | 99 |
| 3" | 73 | 76 | 96 | 18 | 104 |
| 4" | 98 | 100 | 127 | 23 | 114 |
| 5" | 127 | 127 | 150 | 20 | 113 |
| 6" | 151.5 | 151.5 | 180 | 21 | 123 |
| 8" | 200 | 204 | 228 | 24 | 134 |
| Size (inch) | A | B | C | E | F |
| 1/2" | 21.5 | 15 | 34 | 6.5 | 49 |
| 3/4" | 21.5 | 20 | 34 | 6.5 | 50 |
| 1" | 24.5 | 25.4 | 39 | 7 | 60.5 |
| 1 1/4" | 30 | 32.5 | 48 | 7.5 | 68.5 |
| 1 1/2" | 37.5 | 38.5 | 56 | 8 | 70 |
| 2" | 46.5 | 50 | 66 | 8.5 | 79.5 |
| 2 1/2" | 58 | 65 | 79 | 9.5 | 87 |
| 3" | 74.5 | 77.5 | 94 | 10.5 | 93.5 |
| 4" | 101.5 | 102 | 123 | 12 | 101 |
| General information about 99 camlock quick couplings | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16~PN64 |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Socket welded, Hose connection |
| Thread standard | DIN2999, BSP, BSPT, NPT, Metric(ISO) |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Testing, Assembling |
| Certificate | ISO9001, National Certificate, SGS. (Other certificates can be applied with each shipment) |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers' requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from Tianjin port or as customers' choice |
