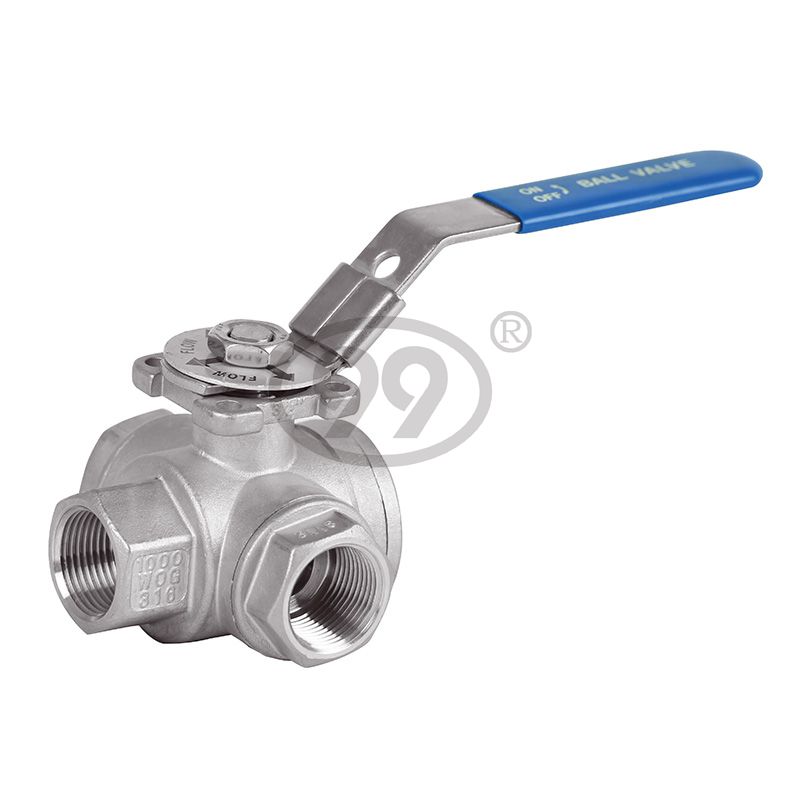

3-Way Ball Valve (L/T Type) (Reduce Bore 1000PSI)

Production standard:

1. Thread dimension as per BSPT/DIN2999/NPT/etc.

2. Working pressure: 6.9Mpa

3. Shell test pressure: 10.4Mpa

3. Sealing test pressure: 7.6Mpa

4. Gas seal test pressure: 0.4-0.7Mpa

5. Working temperature: -40℃ - 180℃

6. Applicable medium: water, oil, natural gas

PRODUCT DESCRIPTION

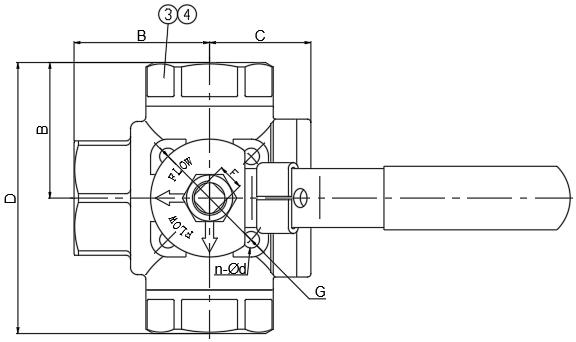

Size Specification:

Size(inch)ΦABCDEFΦGHNLn-Φd
1/212.737.5267511942681/21254-Φ6
3/41642.5328511942723/41254-Φ6
12048.536.59712.511508211544-Φ7
1 1/42557.542.511512.51150871 1/41544-Φ7
1 1/2326247124161470971 1/21824-Φ9
23872.55414516147010421824-Φ9

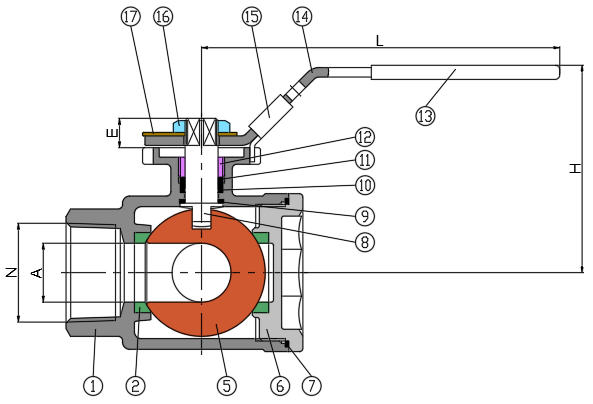

Material List:

ITEMPARTSMATERIAL
1Valve bodyCF8/CF8M(SS304/SS316)
2SeatPTFE
3CoverCF8/CF8M(SS304/SS316)
4Body sealPTFE
5Ball L/T typeCF8/CF8M(SS304/SS316)
6LateralCF8/CF8M(SS304/SS316)
7Lateral sealPTFE
8StemCF8/CF8M(SS304/SS316)
9Stem sealPTFE
10Lower packingPTFE
11Upper packingPTFE
12Packing nutPTFE
13Handle coverPlastic
14HandleStainless steel
15Lock washerStainless steel
16Stem nutA2-70(SS304)
17Flow signAL
